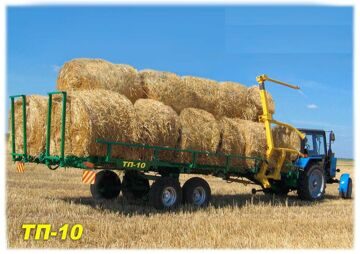

Self-loading bale transporter TP-10
Self-loading bale transporter TP-10
The bale transporter TP-10 is designed for loading, transportation and unloading bales of hay, straw, flax pressed by a baler. It is equipped with a loading device operated by the tractor hydraulic system. Light and strong frame provides required hardness and sufficient capacity.
| Specification: |
|
| Number of transported bales |
|
| 180cm x 150cm |
10 |
| 150cm x 120cm, 120cm x 120cm |
17 |
| Load-carrying capacity, t |
7 |
| Mass, kg |
3500 |
| Overall dimensions, mm |
|
| - length |
9150 |
| - width |
3600 |
| - height |
3100 |
| Self-unloading by conveyor |
|
| unloading time, min |
3 |
| Tractor drawbar category (MTZ) |
1,4 |
| Tractor drawbar device type (MTZ) |
TSU-2/TSU-2B (hydraulic hook/hitch youke)
|
|
